A Homeowner Guide to How Mini Splits Actually Work

What Every Homeowner Should Know About How Mini Split Heat Pumps Heat and Cool

Understanding how mini split heat pumps heat and cool your home comes down to one key idea: they move heat instead of making it.

Here is the short answer:

• Cooling mode: The indoor unit absorbs heat from your room air. Refrigerant carries that heat outside and releases it through the outdoor unit.
• Heating mode: The process reverses. The outdoor unit pulls heat from the outside air — even in cold weather — and the refrigerant carries it inside to warm your space.
• The switch: A component called a reversing valve changes the direction of refrigerant flow, turning one system into both a heater and an air conditioner.
• Why it is efficient: No ductwork means no energy lost through leaky ducts. Inverter technology lets the system adjust its output to match what your home actually needs, instead of cycling on and off at full power.

That is the core of it. But if you want to understand why this matters for your home in Indiana — from managing hot summers to cold winters — the details are worth knowing.

Whether you are thinking about a garage conversion, a home addition, or just trying to get more control over your energy bills, knowing how the system actually works helps you make smarter decisions.

Understanding the Core Components of a Ductless System

To grasp how mini split heat pumps heat and cool, we first need to look at the hardware. Unlike a traditional furnace or central air conditioner that relies on a massive network of metal tunnels (ducts), a Mini Split system is "split" into two primary parts.

1. The Outdoor Unit (Compressor/Condenser): This sits outside your home. It houses the compressor — which we often call the "heart" of the system — and a large coil. Its job is to either release heat into the Indiana summer air or harvest heat from the winter air.
2. The Indoor Unit (Air Handler): This is the part you see on your wall or ceiling. It contains a fan and an evaporator coil. It pulls in the air from your room, changes its temperature, and blows it back out.
3. The Conduit: This is the "bridge" between the two. We only need to drill a small 3-inch hole in your exterior wall to run the conduit through. Inside, it holds the power cable, communication wires, suction tubing, and the refrigerant lines. It also includes a condensate drain to whisk away moisture.

Because these systems don't need large ducts, we can install them in places where traditional HVAC simply won't fit.

Single-Zone vs. Multi-Zone Configurations

One of the most flexible aspects of this technology is how it scales. If you are just looking to condition a new sunroom or a workshop in Fort Branch, a single-zone system is perfect. This is a "one-to-one" setup: one outdoor unit connected to one indoor head.

However, many of our neighbors in the Evansville area opt for multi-zone systems. A single, powerful outdoor compressor can support multiple indoor units — sometimes up to five or even eight, depending on the model. This allows for independent temperature control in every room. You can keep the kitchen cool while the guest bedroom stays cozy, each with its own thermostat. For homeowners looking for Mini Split Heat Pumps Princeton IN, this flexibility is a game-changer for older, multi-story houses.

Indoor Unit Styles for Every Room

We know that aesthetics matter. You aren't limited to just a white box on the wall. Depending on your home's layout in Newburgh or Boonville, we can install:

• Wall-Mounted Units: The most common and cost-effective option, usually placed high on a wall for optimal air distribution.
• Floor-Mounted Units: These sit low, similar to a radiator, and are excellent for attics with low ceilings or rooms with lots of windows.
• Ceiling Cassettes: These are recessed into the ceiling, with only the grille showing, offering a sleek, "hidden" look.
• Ducted Mini-Splits: Sometimes, we use a small air handler hidden in a crawlspace or attic to serve two small adjacent rooms (like a pair of bathrooms) through very short duct runs.

If you are exploring Mini Split Heat Pumps Newburgh IN, you will find that these styles allow the system to blend seamlessly into your decor.

The Science: How Mini Split Heat Pumps Heat and Cool

The "magic" of how mini split heat pumps heat and cool is actually grounded in the second law of thermodynamics: heat naturally moves from a hot place to a cold place. A heat pump simply uses electricity to force that heat to move in the "wrong" direction when we want it to.

The system uses a chemical compound called refrigerant. This substance has a very low boiling point, allowing it to change from a liquid to a gas and back again at relatively low temperatures. This phase change is what allows it to carry massive amounts of heat. When we perform a Heat Pump Installation Services Evansville IN, we are setting up a closed-loop system where this refrigerant circulates endlessly.

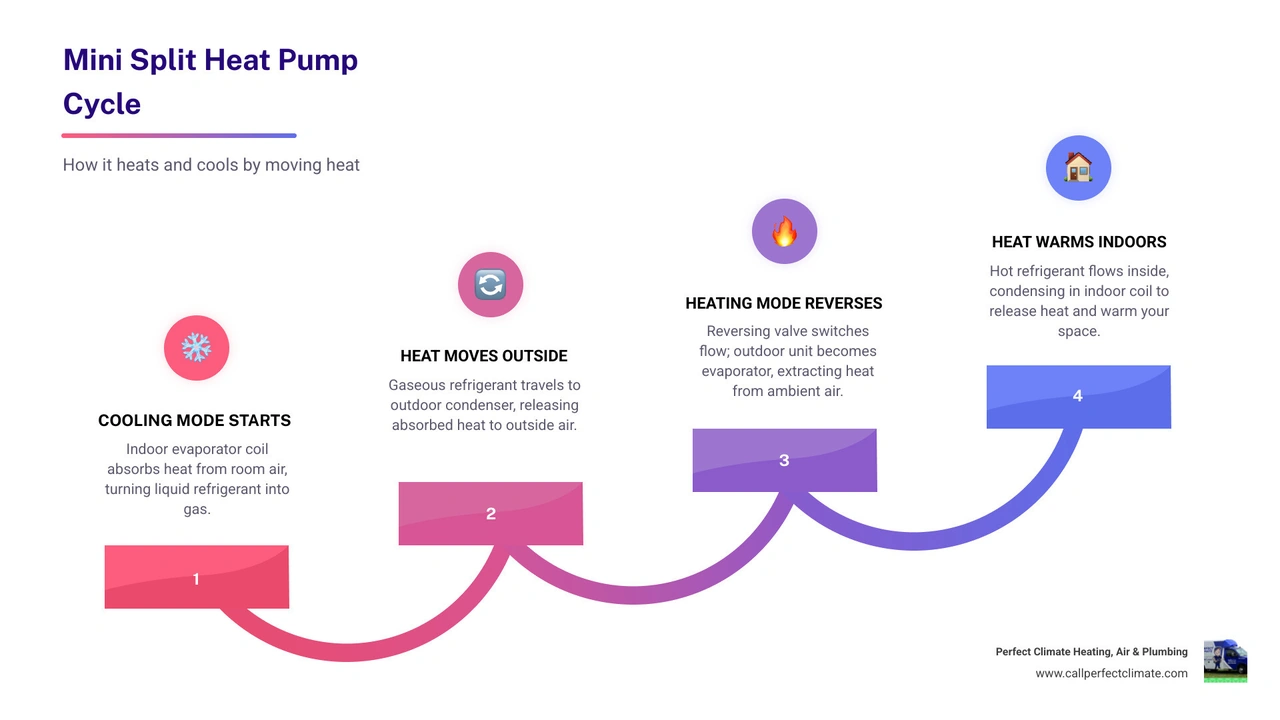

How mini split heat pumps heat and cool in cooling mode

When it’s a humid July day in Poseyville, your mini-split acts like a heat magnet.

1. The indoor unit’s fan pulls warm air from your room over the cold evaporator coil.
2. The liquid refrigerant inside the coil absorbs the heat and evaporates into a gas.
3. This gas travels through the conduit to the outdoor compressor.
4. The compressor squeezes the gas, raising its temperature even higher.
5. The outdoor fan blows air across the condenser coil, releasing that heat into the outside air.
6. The refrigerant cools back into a liquid and returns inside to repeat the process.

This is why Ductless HVAC Services Evansville IN are so popular; they don't just cool the air, they effectively dehumidify it as well.

How mini split heat pumps heat and cool in heating mode

In the winter, the system does something incredible: it reverses. A component called the reversing valve (the "brain" of the unit) flips the flow of the refrigerant.

Even when it's 30°F outside in Princeton, there is still thermal energy in the air. The outdoor unit becomes the "evaporator," absorbing heat from the cold air. The refrigerant carries this heat inside, where the indoor unit (now acting as the "condenser") releases it into your living room.

Because it is moving heat rather than generating it (like an electric furnace that has to get red-hot), it is incredibly efficient. In fact, in heating mode, mini-splits are often 2 to 4 times more efficient than traditional baseboard heaters or boilers. If you need a Ductless Heater Princeton IN, this technology ensures you stay warm without the massive energy spikes of old-school electric heat.

Why Inverter Technology and Zoned Control Save Energy

Standard HVAC systems are either 100% on or 100% off. Imagine driving your car by only using full throttle or the brakes — it would be a jerky, inefficient ride.

Inverter technology is different. It allows the compressor to vary its speed. When your room reaches the desired temperature, the inverter slows the motor down to a "cruise" speed. This maintains a constant temperature without the energy-heavy "startup" spikes that occur when a traditional unit kicks on. This is a major reason why Mini Split Heat Pumps Oakland City IN are often the top choice for energy-conscious homeowners.

Eliminating Energy Loss from Leaky Ducts

Did you know that traditional ducts are responsible for 20-30% air loss in a typical home? If those ducts run through an unconditioned attic or crawlspace, that number can climb to over 30%.

By going ductless, you eliminate this "thermal leakage" entirely. Every bit of air you pay to heat or cool delivered directly into the room. This is why a ductless system can save you hundreds of dollars annually compared to a ducted system. For those looking at Mini Split Heat Pumps Boonville IN, the savings over the 15-to-30-year lifespan of the system are substantial.

Solving the "Thermostat Wars" with Zoning

We have all been there: one person is freezing in the bedroom while someone else is sweating in the kitchen. Because each mini-split head has its own thermostat, you can create "zones."

You can turn off the units in unoccupied rooms or set different temperatures for different family members. This isn't just about comfort; it's about conservation. Why heat the whole house when you are only using the home office? For our customers seeking Mini Split Heat Pumps Haubstadt IN, this "zoned" approach is the ultimate peace-making tool for the household.

Maximizing Efficiency with SEER2 and HSPF2 Ratings

When shopping for a system, you will see several acronyms. Here is what they mean for your wallet:

For example, the GREE Sapphire model can reach a SEER rating of 38, which is nearly double the efficiency of many standard central air units. When we help you choose Heat Pump Systems Princeton IN, we look for ENERGY STAR-certified models that can use up to 60% less energy than standard electric radiators.

Performance in Extreme Indiana Climates

A common myth is that heat pumps don't work in the cold. While older models struggled, modern "cold-climate" mini-splits are designed for places like Hazleton and Francisco.

Many high-end units can maintain 80% of their heating capacity even when it drops to 5°F. Some specialized models can continue to provide heat down to -13°F or even -22°F. If we expect a truly brutal Indiana polar vortex, we can always discuss supplemental heating options, but for 95% of our winter days, a mini-split is more than capable. Exploring Heat Pump Systems Hazleton IN will show you just how far this technology has come.

Professional Installation for Indiana Home Additions and Renovations

While you might see "DIY" kits online, professional installation is vital for several reasons. First, we perform a load calculation (often called a Manual J). We look at your room's square footage, insulation levels, and window sizes to determine the exact BTU (British Thermal Unit) capacity you need. If a unit is too big, it will "short cycle," turning on and off too quickly and failing to remove humidity.

Secondly, handling refrigerant requires EPA 608 certification. We ensure the line sets are properly flared, vacuum-sealed, and charged so you don't end up with leaks that devalue your investment. For those in Elberfeld, our Heat Pump Installation Elberfeld IN services ensure your manufacturer's warranty (which can be up to 12 years) stays valid.

Ideal Use Cases for Ductless Systems

Mini-splits are the "problem solvers" of the HVAC world. They are perfect for:

• Garage Conversions: Turn that dusty storage space into a comfortable gym or workshop.
• Sunrooms: These rooms often have too much glass for a central system to handle.
• Historic Homes: Avoid tearing out original plaster walls or crown molding to fit bulky ducts.
• Attic/Basement Renovations: Where extending existing ductwork is often physically impossible.

If you are planning a project and need Heat Pump Installation Poseyville IN, a ductless system is usually the most invasive-free and cost-effective route.

Frequently Asked Questions about Mini-Split Mechanics

Do mini splits work in extreme cold?

Yes! Modern units are designed to extract heat from outdoor air even in sub-zero temperatures. High-performance models can operate efficiently down to -13°F. In the rare event of even colder weather, the system may use a defrost cycle to keep the outdoor coils clear of ice.

How often should I clean the filters?

Unlike central air filters that you change every three months, mini-split filters are usually permanent and washable. We recommend sliding them out and rinsing them every 1 to 3 months. If you have pets or live in a dusty area, once a month is better to keep the airflow strong.

Can one unit heat and another cool at the same time?

Generally, no. If you have a multi-zone system connected to one outdoor compressor, all the indoor "heads" must be in the same mode (either all cooling or all heating). However, you can set them to different temperatures or turn some off entirely.

Conclusion

At Perfect Climate Heating, Air & Plumbing, we have seen how these systems transform homes across Haubstadt, Evansville, and the surrounding regions. By understanding how mini split heat pumps heat and cool, you can see why they are the future of home comfort: they are quiet (as low as 24 decibels — like rustling leaves!), incredibly efficient, and offer unparalleled control.

Whether you are in Owensville, New Harmony, or Patoka, our team is here to help you design the perfect climate for your home. From initial load calculations to long-term preventive maintenance, we specialize in the advanced technologies that keep your energy bills low and your comfort high.

Ready to see if a Mini Split is right for your Indiana home? Give us a call today, and let’s build a more efficient future together.
