How HVAC Load Calculations Work: 6 Practical Steps

Step 1: Start With Design Conditions and the Home’s Basic Data

A good load calculation begins with the conditions we are designing for, not with the equipment catalog.

That means we first define:

• The home's location in our Southwest Indiana and nearby Mount Carmel, IL service area
• The indoor comfort target
• The outdoor design temperature
• The home's square footage
• Ceiling height
• Orientation to the sun
• Room-by-room layout
• Whether we are calculating a whole-house block load or detailed room-by-room loads

This is important because HVAC equipment is sized for a "design day" - a very hot or very cold day that represents near-peak local conditions, not every extreme weather event imaginable.

For heating, professionals often use a 99% winter design condition. For cooling, a 0.4% summer design condition is common. In plain English, that means the system is sized to handle conditions that are severe, but still realistic for normal design practice. If we size everything for the absolute worst hour ever recorded, the system usually ends up too large.

How HVAC Load Calculations Work at the Starting Point

At the beginning of the process, we also set the indoor temperature and humidity goals.

A cooling calculation is not just about air temperature. It also considers:

• Dry-bulb temperature
• Wet-bulb temperature
• Relative humidity

Why does that matter? Because a home can be 72 degrees and still feel sticky if humidity is too high. Research-based comfort ranges for summer are typically around 70 to 76 degrees dry bulb with roughly 45% to 65% relative humidity. In winter, comfort is often around 65 to 68 degrees with at least 30% relative humidity.

The load calculation uses these indoor targets along with local outdoor design data to estimate the peak heating and cooling load in BTUs per hour.

Why Square Footage Alone Is Only a Rough Shortcut

Square footage is a starting point, not a final answer.

Rules of thumb often say things like:

• 1 ton of cooling for about 500 square feet
• 1,000 square feet may need around 2 tons, or 24,000 BTU/h
• 2,500 square feet may need around 5 tons, or 60,000 BTU/h

Those numbers can be useful for rough conversation, but they ignore the stuff that actually changes the load:

• Insulation quality
• Window area and glass type
• Shade and sun exposure
• Air leakage
• Occupancy
• Duct losses
• Indoor humidity needs

One ton of cooling equals 12,000 BTUs per hour, and a typical air conditioner moves about 400 CFM per ton. But that still does not tell us whether a specific house in Evansville, Newburgh, Princeton, or Haubstadt needs that size.

Two homes with the same square footage can have dramatically different loads. If you want a broader look at sizing basics, see Best HVAC System Size for Your Property.

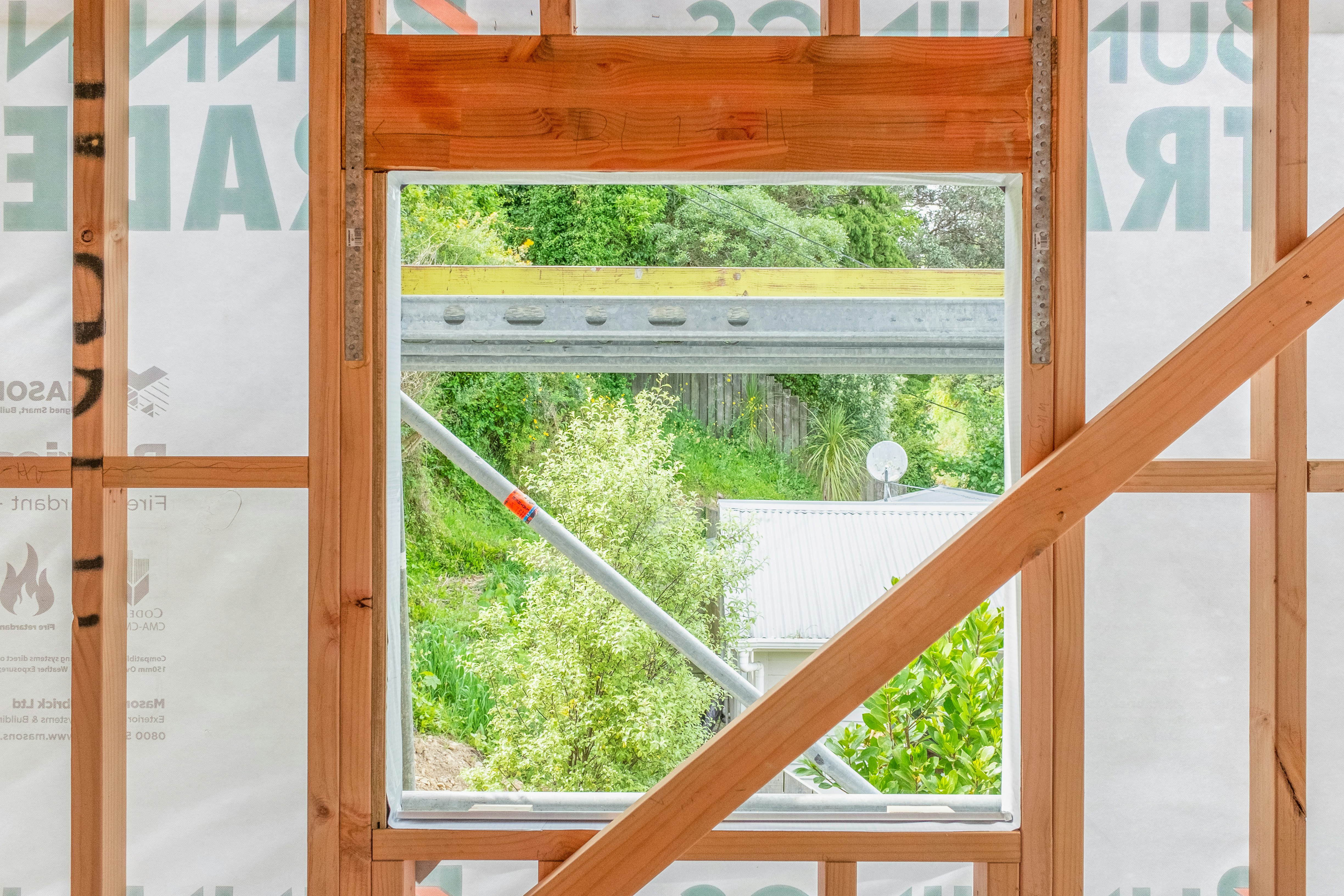

Step 2: Measure the Building Envelope Instead of Guessing

The building envelope is everything that separates conditioned indoor air from the outdoors or from unconditioned spaces.

That includes:

• Exterior walls
• Attic or roof assemblies
• Floors over crawlspaces or garages
• Windows
• Doors
• Air leakage paths

This is where basic heat transfer comes in. Heat moves through the envelope by conduction, air movement, and radiation. A load calculation has to capture all three well enough to predict how much heating or cooling the home will need.

For conductive heat flow, the key values are:

• R-value, which measures resistance to heat flow
• U-value, which measures how easily heat passes through a building assembly

Lower U-values and higher R-values generally reduce load.

Windows also add another wrinkle: solar heat gain. That is where SHGC, or solar heat gain coefficient, matters. A big west-facing window wall can raise cooling load quickly, especially in afternoon sun.

Manual J vs. Simple Square-Footage Estimates

For homes, the standard detailed method is Manual J, published by ACCA. A proper Manual J uses home-specific inputs instead of broad assumptions.

That is the difference between:

• "This home is 2,000 square feet, so it probably needs 4 tons"
• and
• "This home has this orientation, this insulation level, these windows, this infiltration rate, these internal gains, and this actual design load"

Manual J is better because it is:

• Based on measured or documented inputs
• Room-by-room when needed
• Better for code compliance
• Better for replacement decisions
• Better for humidity and comfort outcomes

It also helps prevent one of the most common mistakes in HVAC replacement: swapping in the same size system just because that is what the house already has. The old system may have been oversized from day one, or the home may have changed since then through new insulation, new windows, air sealing, or additions.

For more on matching tonnage to actual needs, see Selecting the Right AC Tonnage.

The Envelope Details That Change Loads Fast

Small envelope differences can create big sizing differences.

Examples include:

• Single-pane windows versus low-E double-pane glass
• Full sun exposure versus mature tree shading
• Dark roofing versus more reflective roofing
• Poor attic insulation versus a well-insulated attic
• Leaky recessed lights and penetrations versus good air sealing
• Thermal bridges through framing or metal connections

Layout matters too. A long ranch home, a two-story home, and a home with a bonus room over the garage may all have very different room-by-room loads even if total square footage is similar.

That is why we do not want to guess from the curb. If your layout is unusual, Different Home Layouts Proper AC Sizing is a useful companion read.

Step 3: Add Internal Loads, Air Leakage, and Fresh Air Requirements

The home itself is not the only thing creating load. The people and things inside the home matter too.

Internal loads usually include:

• Occupants
• Appliances
• Cooking equipment
• Lighting
• TVs, computers, and electronics
• Pumps, motors, and other devices

Then we add air-related loads:

• Infiltration, which is uncontrolled outdoor air leaking in
• Ventilation, which is intentional fresh air brought in mechanically or naturally
• Duct losses
• Fan heat
• Leakage in return and supply ducts

How HVAC Load Calculations Work for Occupancy and Appliance Heat

Every person in a home adds both sensible heat and latent heat.

• Sensible heat raises air temperature
• Latent heat adds moisture

A typical occupant contributes roughly 250 BTU/h sensible heat in residential assumptions, and people also add moisture through breathing and normal activity. Kitchens are another big variable because cooking adds both heat and humidity.

Appliances and electronics matter too. Almost all the electricity used by lights and plug-in devices ends up as heat indoors. That is why "just a few devices" can turn into a real cooling load, especially in smaller or tighter homes.

Ventilation, Infiltration, Ducts, and Fan Heat in the Real Cooling Load

This is where many rough estimates fall apart.

The air conditioner is not just handling the room load. The cooling coil may also have to handle:

• Outdoor air ventilation load
• Moisture in infiltrating air
• Heat picked up by ducts in hot attics or crawlspaces
• Supply leakage to unconditioned spaces
• Return leakage pulling in hot, humid air
• Heat added by the blower fan

That total is often called the cooling coil load, and it can be meaningfully higher than the simple room sensible load.

Ventilation and fresh air can be a major share of the cooling burden. In some applications, fresh air can account for 20% to 30% of total cooling load. Even in homes, unmanaged outdoor air can strongly affect humidity control.

If the duct system is outside the conditioned space, losses can be significant. This is one reason equipment sizing and duct design need to work together, not as separate guesses. For more on that comfort connection, read How Proper HVAC Sizing Affects Comfort and Efficiency.

Why Tight Homes and Older Homes Can Need Very Different Equipment

Air leakage varies wildly by house age and construction quality.

Research examples show:

• Older homes may be around 0.5 ACH or more
• Tight newer homes may target around 0.15 ACH

That difference can swing the load substantially, especially for humidity control during cooling season and for heating during cold weather.

A deep retrofit can also change everything. If a home gets:

• Better insulation
• New windows
• Added air sealing
• Duct improvements

then the old equipment size may suddenly be too large. In some cases, a system sized for an older version of the home can end up oversized by 30% to 40% after major efficiency upgrades.

That is why load calculations should be updated whenever the house changes.

Step 4: Separate Sensible and Latent Load to Understand Comfort

Why This Split Matters

A lot of homeowners think cooling means lowering temperature. It does, but only partly.

A real cooling load has two pieces:

• Sensible load, which lowers dry-bulb temperature
• Latent load, which removes moisture from the air

If you ignore latent load, you can end up with a home that is technically cool but still uncomfortable. Nobody wants their living room to feel like a chilled greenhouse.

Summer comfort is usually tied to both temperature and humidity. A common comfort range is about 70 to 76 degrees with 45% to 65% relative humidity. If humidity stays too high, the house feels clammy, and indoor air quality can suffer.

How HVAC Load Calculations Work When Heat Gain Is Not All Temperature Gain

There are a few related terms worth separating:

• Space heat gain: heat entering or generated in the space right now
• Space cooling load: the rate at which the system must remove heat from the space
• Space heat extraction rate: what the system actually removes at that moment
• Cooling coil load: what the air handler coil must remove, including system effects

Not all heat gains become immediate air temperature rise. Some heat enters as radiation and is absorbed by walls, floors, ceilings, and furniture before it shows up as cooling load.

That is why load calculation is more than "add up the heat and buy the next bigger unit."

Thermal Storage and Time Delay: Why Peak Heat Gain and Peak Cooling Load Differ

Buildings store heat.

Heavy materials such as drywall, plaster, brick, flooring, and framing absorb radiant heat and release it later. This is called thermal storage, and it creates time delay.

For example:

• Afternoon sun hits west-facing windows
• Some of that heat warms room surfaces
• The surfaces release part of that heat later
• The cooling load may peak after the solar gain peaks

This is a big reason why the sum of instantaneous heat gains does not always equal the cooling load at the same moment.

Methods like Heat Balance and Radiant Time Series are specifically designed to account for these time-delay effects. More on those in the next section.

Why Oversized AC Often Feels Cool but Clammy

Oversized systems often satisfy the thermostat quickly and shut off before they run long enough to remove much moisture.

That causes:

• Short cycling
• Poor dehumidification
• Higher indoor relative humidity
• More wear on compressors and controls
• Uneven room temperatures

Research shows oversized cooling systems can leave indoor relative humidity 10 to 15 percentage points higher than a properly sized system in humid climates. Even when the air temperature looks fine, comfort drops.

That is why "bigger is better" is one of the most expensive myths in HVAC. The right system should be sized just right, not sized for bragging rights.

If efficiency is part of your upgrade plan, see Energy Efficient AC Installation Options.

Step 5: Choose the Right Calculation Method for the System Type

Load calculations can be done with different methods, and the best method depends on the building and system.

For residential work, Manual J is the familiar standard. In broader HVAC engineering, the two major cooling-load methods are:

• Heat Balance
• Radiant Time Series

Both improve on older shortcut methods because they handle dynamic, time-dependent heat flow more realistically.

Heat Balance and Radiant Time Series in Plain English

Heat Balance is the more fundamental method. It tracks how heat moves through the building by looking at:

• Outdoor conditions
• Conduction through walls and roofs
• Solar radiation
• Internal gains
• Radiation exchange with room surfaces
• Convection to room air

It is thorough, but also more complex.

Radiant Time Series is a streamlined method derived from Heat Balance. It converts radiant gains into cooling load over time using weighting factors that reflect delayed release from building surfaces.

In plain English:

• Heat Balance follows the physics in detail
• Radiant Time Series gives a practical way to capture the same time-delay behavior with less complexity

Both are far better than static shortcuts when thermal storage matters.

How HVAC Load Calculations Work for Air-Based vs. Radiant Cooling Systems

System type matters too.

In a standard air-based system, much of the cooling effect is convective. The system cools and dehumidifies air directly, then delivers that air to the rooms.

In a radiant cooling system, cooled surfaces do more of the work by absorbing radiant heat from people and objects. That changes how and when loads are felt in the space.

Key differences include:

• Air systems handle sensible and latent loads together at the coil
• Radiant systems mainly address sensible loads
• Radiant systems still need a separate plan for ventilation air and moisture control
• Load timing can differ because radiant surfaces interact differently with stored heat and solar gains

So the load calculation is not one-size-fits-all. The system has to match the kind of load it will actually handle.

Why Detailed Software and On-Site Measurements Beat Default Inputs

Modern load calculations are much better when they use real field data.

That may include:

• Accurate room measurements
• Window dimensions and orientation
• Insulation inspection
• Duct location and condition
• Air leakage testing
• Digital documentation
• In some workflows, LiDAR or 3D scanning for precise home models

Default software assumptions can be useful placeholders, but they should not become the final answer. Bad inputs create bad outputs, just faster.

Here is the simple comparison:

Step 6: Turn the Load Calculation Into the Right Equipment Decision

A load calculation is not the finish line. It is the starting point for equipment selection.

After Manual J comes Manual S for equipment selection, and often Manual D for duct design. This matters because the goal is not to match equipment to square footage. The goal is to match real equipment performance to the calculated load.

Match the Load Report to Equipment Performance, Not Nameplate Size Alone

The nameplate size on a condenser or furnace is only part of the story.

We also need to look at:

• Sensible capacity
• Latent capacity
• Blower airflow
• Performance at actual design conditions
• Furnace output, not just input
• Heat pump capacity at outdoor temperature

For air conditioning, one common benchmark is about 400 CFM per ton. But even that can vary depending on humidity control goals and equipment design.

A 3-ton unit is not automatically right just because the load is "around 3 tons." The selected indoor and outdoor components must deliver the right capacity under local conditions, especially sensible versus latent performance.

If you are comparing efficiency levels, Standard Efficiency vs High Efficiency HVAC Comparison can help frame the next step.

What Homeowners Should Ask for Before Approving New Equipment

Before you move forward with replacement or new installation, ask for:

• A Manual J load calculation report
• Room-by-room results, not only a whole-house total
• Notes on insulation and envelope assumptions
• Window and orientation data
• Duct system review
• Ventilation assumptions
• Equipment selection based on the report
• Permit-related documentation if required

If a contractor sizes equipment without measuring the house, that is a red flag. If they recommend the same size "because that is what you had before," that is another one.

For a broader look at the installation process, read HVAC Installation Key Steps.

Common Load Calculation Mistakes to Avoid

Watch out for these common errors:

• Replacing with the same size without recalculating
• Using square footage as the final sizing method
• Adding multiple safety factors "just in case"
• Ignoring duct losses
• Ignoring ventilation requirements
• Skipping latent load and humidity control
• Leaving software defaults unchanged
• Failing to update for insulation or window upgrades
• Using only a block load when room-by-room design is needed

Red flags include:

• No site visit
• No measurements
• No discussion of windows, insulation, or air leakage
• No mention of humidity
• No written load report

Frequently Asked Questions About How HVAC Load Calculations Work

What is an HVAC load calculation and why does it matter?

An HVAC load calculation determines how many BTUs per hour of heating or cooling a home needs to maintain comfort under design conditions. It matters because proper sizing improves comfort, efficiency, humidity control, and equipment life. Systems that are too large or too small both create problems.

Is a Manual J load calculation really better than using square footage?

Yes. Manual J is much more accurate because it uses room-by-room and home-specific inputs such as climate, insulation, windows, orientation, infiltration, occupancy, and internal gains. Square footage is only a rough shortcut.

Can a home need a different size system after insulation or window upgrades?

Absolutely. Air sealing, insulation improvements, new windows, and duct upgrades can reduce the load enough that the old equipment size is no longer appropriate. That is why replacement systems should be recalculated, not copied.

Conclusion: Get the Load Calculation Right Before You Choose the System

The biggest takeaway is simple: the right HVAC system starts with the right math.

When we understand how HVAC load calculations work, we can make better decisions about comfort, humidity control, efficiency, and long-term reliability. A proper load calculation looks at the whole home - not just square footage - and turns that information into a system choice that actually fits.

At Perfect Climate Heating, Air & Plumbing, we help homeowners across Haubstadt, Evansville, Newburgh, Princeton, Boonville, Fort Branch, Poseyville, Mount Carmel, and nearby communities take that step before equipment is selected. If you want to learn more about the services involved in planning, installing, or upgrading comfort systems, visit Understanding Different HVAC Services or explore More info about hvac services.
